YDA138 - STEREO 10W DIGITAL AUDIO POWER AMPLIFIER

Product Overview

YAMAHA CORPORATION

Datasheet Details

Part number	YDA138
Manufacturer	YAMAHA CORPORATION
File Size	1.22 MB
Description	STEREO 10W DIGITAL AUDIO POWER AMPLIFIER
Datasheet	YDA138 Datasheet

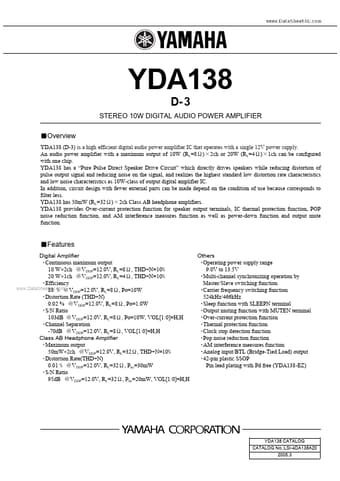

Additional preview pages of the YDA138 datasheet.

Product details

Description

of operating functions Digital Amplifier Function YDA138 has digital amplifiers with analog input, PWM pulse output, Maximum output of 10W (RL=8Ω)×2ch.

Features

mplifier Continuous maximum output 10 W×2ch ＠VDDP=12.0V, RL=8Ω, THD+N=10% 20 W×1ch ＠VDDP=12.0V, RL=4Ω, THD+N=10% Efficiency www. DataSheet4U. com 88 % ＠VDDP=12.0V, RL=8Ω, Po=10W Distortion Rate (THD+N) 0.02 % ＠VDDP=12.0V, RL=8Ω, Po=1.0W S/N Ratio 103dB ＠VDDP=12.0V, RL=8Ω, Po=10W, VOL[1:0]=H,H Channel Separation -70dB ＠VDDP=12.0V, RL=8Ω, VOL[1:0]=H,H Class AB Headphone Amplifier Maximum output 50mW×2ch ＠VDDP=12.0V, RL=32Ω, THD+N=10% Distortion Rate(THD+N) 0.01 % ＠VDDP=12.0V, RL=32Ω, Pho=30mW S/N Ra.
