YM3016 - 2-Channel Serial & Binary Input Floating D/A Converter

Product Overview

Yamaha

📥 Download Datasheet

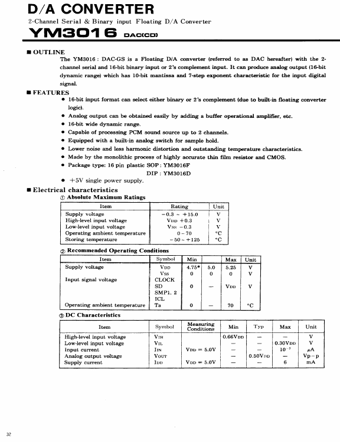

YM3016 2-Channel Serial & Binary Input Floating D/A Converter by Yamaha - Datasheet Preview — Datasheet preview – YM3016

Datasheet Details

Part number	YM3016
Manufacturer	Yamaha
File Size	127.22 KB
Description	2-Channel Serial & Binary Input Floating D/A Converter
Datasheet	YM3016 Datasheet
Additional preview pages of the YM3016 datasheet.

Product details

Features

S.
16-bit input format can select either binary or 2's complement (due to built-in floating converter logic).
Analog output can be obtained easily by adding a buffer operational amplifier, etc.
16-bit wide dynamic range.
Capable of processing PCM sound source up to 2 channels.
Equipped with a built-in analog switch for sample hold.
Lower noise and less harmonic distortion and outstanding temperature characteristics.
Made by.
