IC-554 - 72-pin DIMM

Datasheet Details

Part number	IC-554
Manufacturer	Yamaichi Electronics
File Size	136.89 KB
Description	72-pin DIMM
Datasheet	IC-554 Datasheet
Additional preview pages of the IC-554 datasheet.

📁 Similar Datasheet

IC-202 - Quick Guide (Konica)
IC-497 - 144-Pin DIMM (Yamaichi)
IC-706MKIIG - HF/VHF/UHF ALL MODE TRANSCEVER Service Manual (Icom)
IC-7400 - HF/VHF ALL MODE TRANSCEIVER Service Manual (Icom)
IC-A110 - VHF AIR BAND Transceiver (ICOM)
IC-B160203-6YFLYA - LCD (Illuminant)
IC-B160401-6YFLYA - LCD (Illuminant)
IC-B200202-6YFLYA - LCD (Illuminant)
IC-B200401-6YFLYA - LCD (Illuminant)
IC-DC - 2-CHANNEL BUCK/BOOST DC/DC CONVERTER (IC-Haus)

Other Datasheets by Yamaichi Electronics

IC-553 - 160-pin DIMM

Full PDF Text Transcription

Click to expand full text

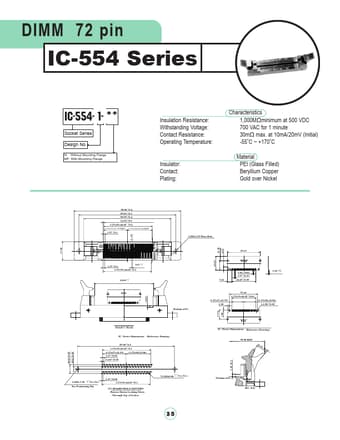

DIMM 72 pin IC-554 Series IC-554- 1- ** Socket Series Design No. N: Without Mounting Flange MF: With Mounting Flange Insulation Resistance: Withstanding Voltage: Contact Resistance: Operating Temperature: Characteristics 1,000M½minimum at 500 VDC 700 VAC for 1 minute 30m½ max. at 10mA/20mV (Initial) -55ûC ~ +170ûC Material PEI (Glass Filled) Beryllium Copper Gold over Nickel Insulator: Contact: Plating: 98.00 ±0.4 89.00 ±0.2 80.00 ±0.4 0.635 ±0.1 1.27x35=44.45 ±0.2 1.27x17=21.59 REF 1.27x18=22.86 REF. 1.27 ±0.1 C IC-554-1 2-DIA3.20 Thru Hole 17.00 17.78 6.35 59.69 0.67 +0.1 0 1.27 ±0.1 1.27x35=44.45 –0.2 25.35 Front 54.00 +0.2 0 7.62 1.02 ±0.03 1.27 ±0.03 44.45 ±0.05 1.00 +0.09 -0.07 Back (2.00) 51.66 1.27x35=44.45 ±0.05 (1.27x17=21.59) 2.00 (Position of IC) (1.
