IC200-xxx I.C. Socket / Quad Flat Package

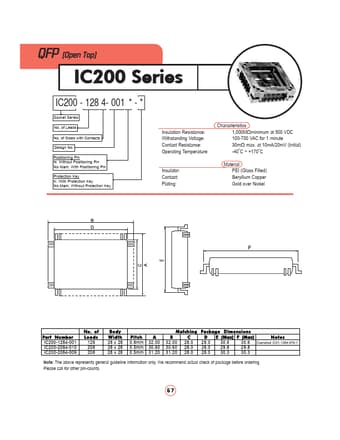

QFP (Open Top) IC200 Series IC200 - 128 4- 001 - Socket Series No. of Leads No. of Sides with Contacts Design No. Positioning Pin N: Without Positioning Pin No Mark: With Positioning Pin Protection Key K: With Protection Key No Mark: Without Protection Key Insulation Resistance: Withstanding Voltage: Contact Resistance: Operating Temperature: Characteristics 1,000M½minimum at 500 VDC 100-700 VAC for 1 minute 30m½ max. at 10mA/20mV (Initial) -40ûC ~ +170ûC Material PEI (Glass Fill.
