IC37NRB-1404-G4, IC37 Datasheet - Yamaichi Electronics

IC37NRB-1404-G4 Dual Inline Package

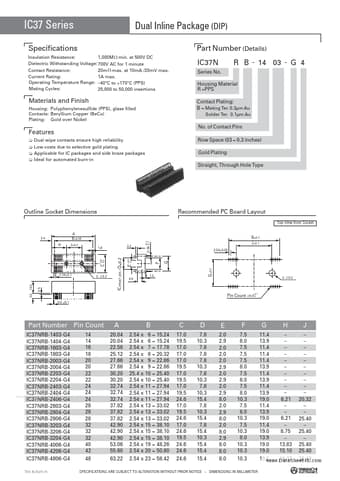

IC37 Series Specifications Dual Inline Package (DIP) Part Number (Details) Insulation Resistance: 1,000M W min. at 500V DC Dielectric Withstanding Voltage: 700V AC for 1 minute Contact Resistance: 20m W max. at 10mA /20mV max. Current Rating: 1A max. Operating Temperature Range: 40°C to +170°C (PPS) Mating Cycles: 25,000 to 50,000 insertions IC37N Series No. R B - 14 03 - G 4 Housing Material R =PPS Contact Plating: B = Mating Ter. 0.3µm Au Solder Ter. 0.1µm Au Materials and Finis.

IC37NRB-1404-G4 Features

* í Dual wipe contacts ensure high reliability í Low costs due to selective gold plating í Applicable for IC packages and side braze packages í Ideal for automated burn-in Row Space (03 = 0.3 inches) Gold Plating Straight, Through Hole Type Outline Socket Dimensions Recommended PC Board Layout Top

IC37_YamaichiElectronics.pdf

This datasheet PDF includes multiple part numbers: IC37NRB-1404-G4, IC37. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IC37NRB-1404-G4, IC37

Manufacturer:

Yamaichi Electronics

File Size:

57.04 KB

Description:

Dual inline package.

Note:

This datasheet PDF includes multiple part numbers: IC37NRB-1404-G4, IC37.
Please refer to the document for exact specifications by model.
