IC39-1612**-G4 Zig-Zag Inline Package

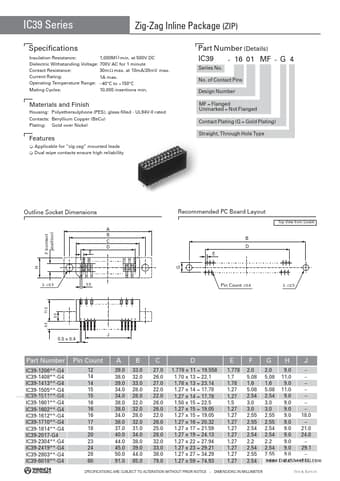

IC39 Series Specifications Zig-Zag Inline Package (ZIP) Part Number (Details) IC39 - 16 01 MF - G 4 Series No. No. of Contact Pins Design Number MF = Flanged Unmarked = Not Flanged Contact Plating (G = Gold Plating) Straight, Through Hole Type Insulation Resistance: 1,000M W min. at 500V DC Dielectric Withstanding Voltage: 700V AC for 1 minute Contact Resistance: 30m W max. at 10mA/20mV max. Current Rating: 1A max. Operating Temperature Range: 40°C to +150°C Mating Cycles: 10,000 inse.

IC39-1612**-G4 Features

* í Applicable for ''zig-zag'' mounted leads í Dual wipe contacts ensure high reliability Outline Socket Dimensions A B C D E Recommended PC Board Layout Top View from Socket F (contact position) B D E H 2- Æ2.5 0.8 G Pin Count Æ0.8 2- Æ2.5 11.5 4.0 3.0 0.5 x 0.4 J Part Number IC39-1206

IC39_YamaichiElectronics.pdf

This datasheet PDF includes multiple part numbers: IC39-1612**-G4, IC39. Please refer to the document for exact specifications by model.
