BR5001L - Bridge Rectifier

This page provides the datasheet information for the BR5001L, a member of the BR50005L Bridge Rectifier family.

Datasheet Summary

Features

s.
Io 50A.
VRRM 50V~1000V.
High surge forward current capability.
Outline Dimensions and Mark.

BR5001L Bridge Rectifier by Yangjie - Datasheet Preview — Datasheet preview – BR5001L

Datasheet Details

Part number	BR5001L
Manufacturer	Yangjie
File Size	185.31 KB
Description	Bridge Rectifier
Datasheet	BR5001L Datasheet
Additional preview pages of the BR5001L datasheet.

📁 Similar Datasheet

BR5001L - SINGLE PHASE 50 AMP BRIDGE RECTIFIERS (KAUSHENG)
BR5001 - Bridge Rectifiers (Yangzhou Yangjie)
BR5001 - Bridge Rectifier (SEQ)
BR5001 - Bridge Rectifier (Formosa MS)
BR5001 - SILICON BRIDGE RECTIFIERS (EIC discrete Semiconductors)
BR5001 - Silicon Bridge Rectifiers (SeCoS)
BR5001-G - Silicon Bridge Rectifiers (Comchip)
BR50014 - SINGLE PHASE 50 AMP BRIDGE RECTIFIERS (KAUSHENG)
BR50016 - SINGLE PHASE 50 AMP BRIDGE RECTIFIERS (KAUSHENG)
BR50018 - SINGLE PHASE 50 AMP BRIDGE RECTIFIERS (KAUSHENG)

Other Datasheets by Yangjie

BR50005L - Bridge Rectifier
BR5002L - Bridge Rectifier
BR5004L - Bridge Rectifier
BR5006L - Bridge Rectifier
BR5008L - Bridge Rectifier
BR5010L - Bridge Rectifier

Full PDF Text Transcription

Click to expand full text

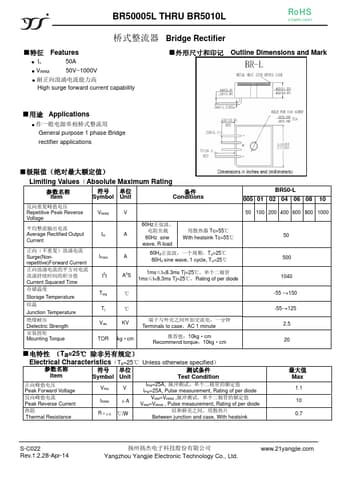

BR50005L THRU BR5010L RoHS COMPLIANT Bridge Rectifier ■ Features ● Io 50A ● VRRM 50V~1000V ● High surge forward current capability ■ Outline Dimensions and Mark ■ Applications ● General purpose 1 phase Bridge rectifier applications ■（） Limiting Values（Absolute Maximum Rating Item Symbol Unit Conditions BR50-L 005 01 02 04 06 08 10 Repetitive Peak Reverse Voltage VRRM V 50 100 200 400 600 800 1000 Average Rectified Output Current IO 60Hz， A 60Hz sine Tc=55℃ With heatsink Tc=55℃ wave, R-load 50 （） Surge(Nonrepetitive)Forward Current IFSM A 60HZ，，Ta=25℃ 60HZ sine wave, 1 cycle, Ta=25℃ 500
