1S30 Datasheet, Rectifier, Yangzhou Yangjie

1S30 Features

• Rectifier
• Guardring for overvoltage protection
• Very small conduction losses
• Extremely fast switching
• High forward surge capability
• High frequency

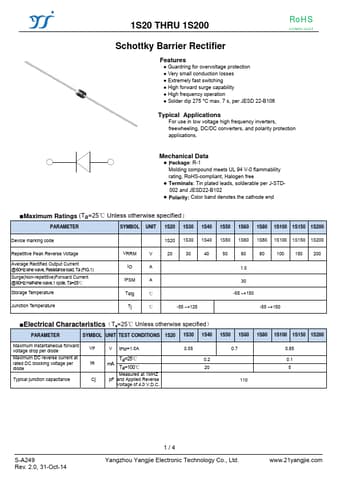

PDF File Details

Part number:

1S30

Manufacturer:

Yangzhou Yangjie

File Size:

182.23kb

Download:

📄 Datasheet

Description:

Schottky barrier rectifier.

1S30 Application

• Applications For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. Mechanical Data
