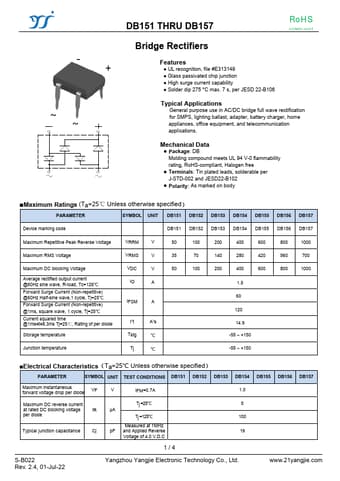

DB157 Features
* UL recognition, file #E313149
* Glass passivated chip junction
* High surge current capability
* Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications General purpose use in AC/DC bridge full wave rectification for SMPS, lighting ballast, adapter, battery charger, h
Datasheet Details
DB157, DB151
Yangzhou Yangjie
216.59 KB
Bridge rectifiers.
This datasheet PDF includes multiple part numbers: DB157, DB151.
Please refer to the document for exact specifications by model.
