DGL50N120CTL0D IGBT

DGL50N120CTL0D Description

DGL50N120CTL0D RoHS COMPLIANT IGBT Discrete VCE IC 1200 V 50 A VCE(SAT) IC=50A 1.80 V Circuit Maximum Ratings Parameter Collector-Emitter.

DGL50N120CTL0D Features

* High breakdown voltage to 1200V for improved reliability
* Maximum junction temperature 175℃
* Positive temperature coefficient
* Including fast & soft recovery anti-parallel FWD
* High short circuit capability(10us) Symbol VCE IC IF VGE VGE ICM IFpuls Tsc Ptot 1 Value 1200 8

DGL50N120CTL0D Applications

* Inverter for motor drive
* AC and DC servo drive amplifier

📥 Download Datasheet

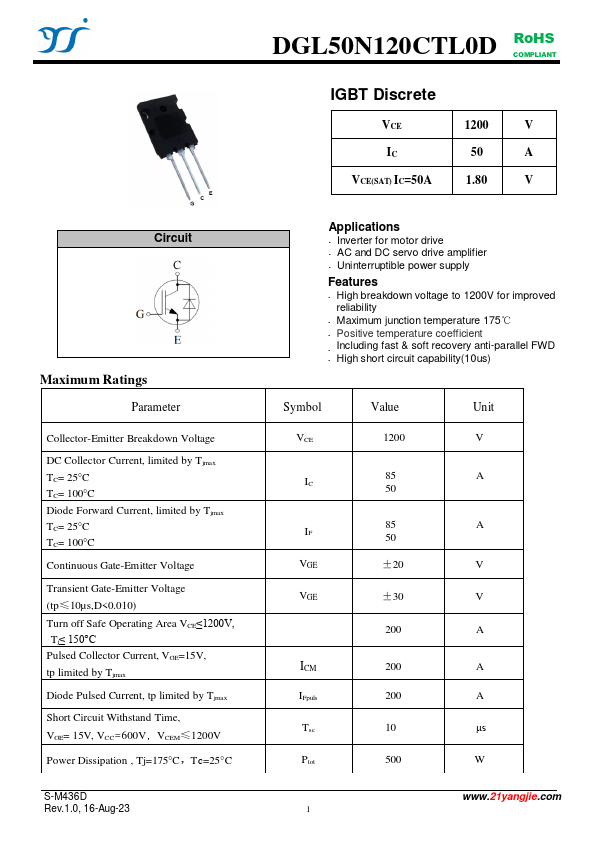

Preview of DGL50N120CTL0D PDF

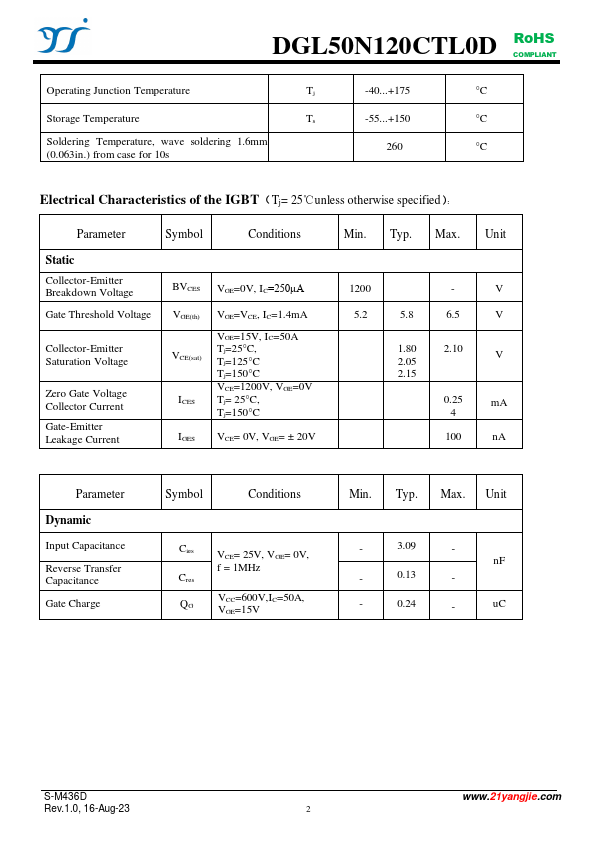

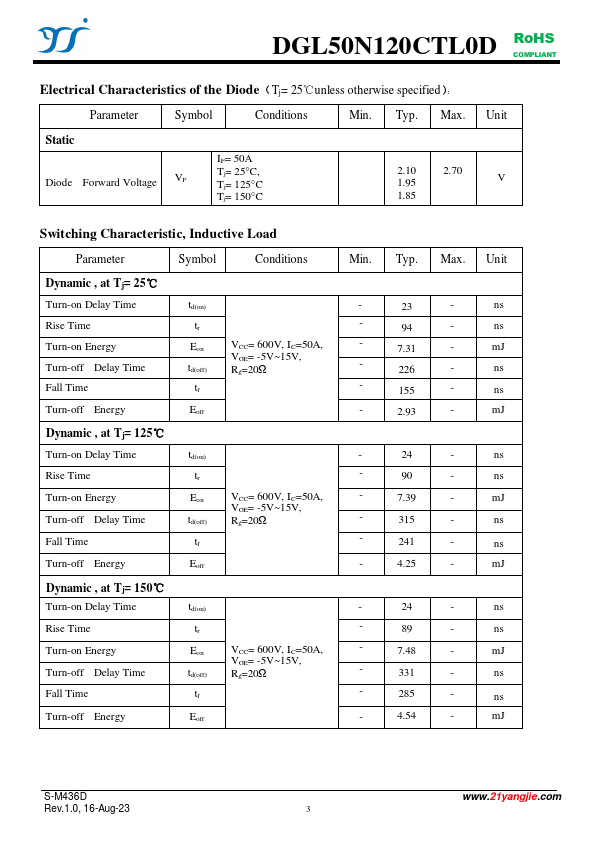

datasheet Preview Page 2 datasheet Preview Page 3
