DGL75N120CTL1J IGBT

DGL75N120CTL1J Description

Circuit Maximum Ratings Parameter Collector-Emitter Breakdown Voltage DC Collector Current, limited by Tjmax TC= 25°C TC= 100°C Diode Forward Current,.

DGL75N120CTL1J Features

* High breakdown voltage to 1200V for improved reliability
* Maximum junction temperature 175℃
* Positive temperature coefficient
* Including fast & soft recovery anti-parallel FWD
* High short circuit capability(10us) Symbol VCE IC IF VGE VGE ICM IFpuls Tsc Ptot 1 Value 1200 1

DGL75N120CTL1J Applications

* Inverter for motor drive
* Three-level Solar String Inverter

📥 Download Datasheet

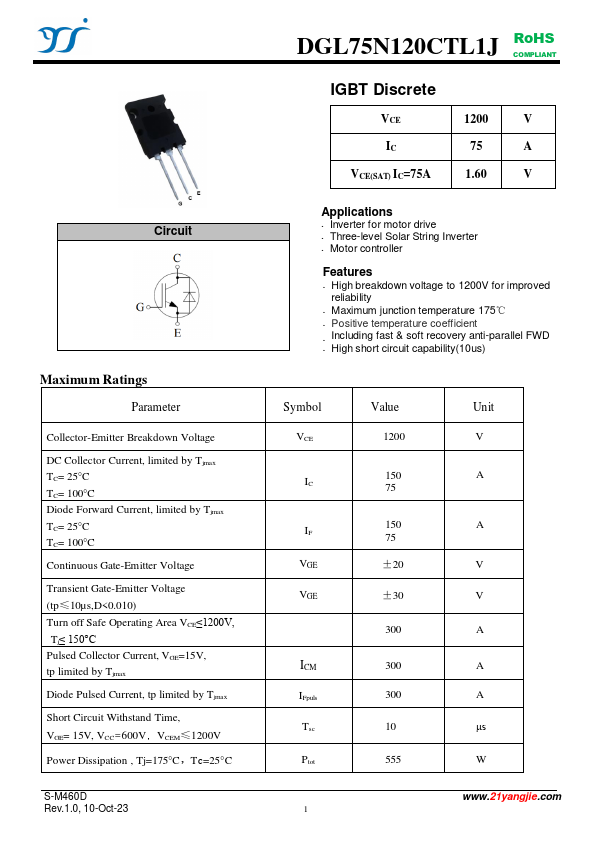

Preview of DGL75N120CTL1J PDF

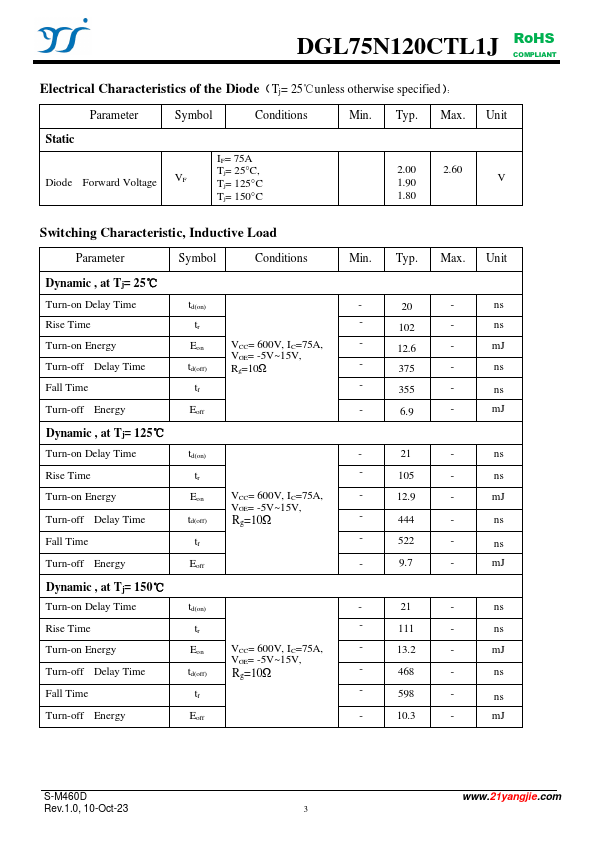

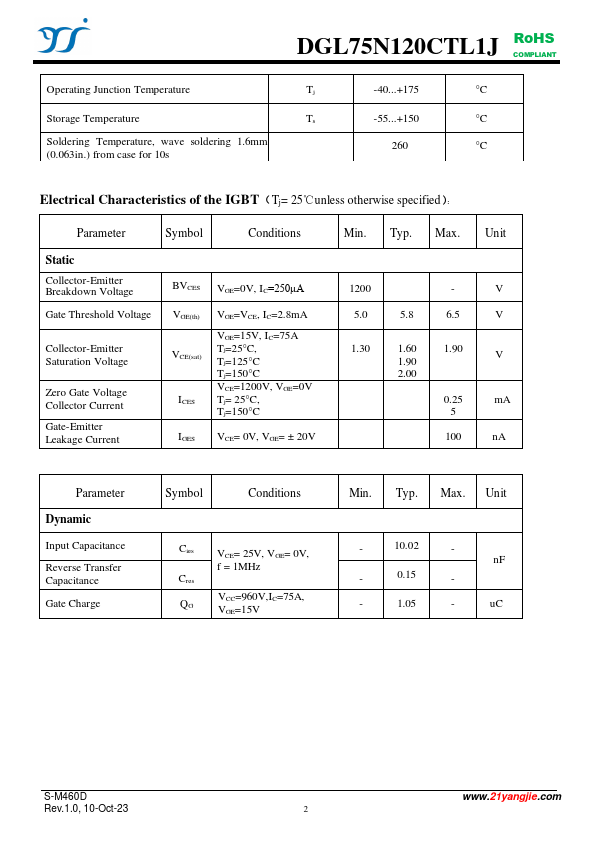

datasheet Preview Page 2 datasheet Preview Page 3
