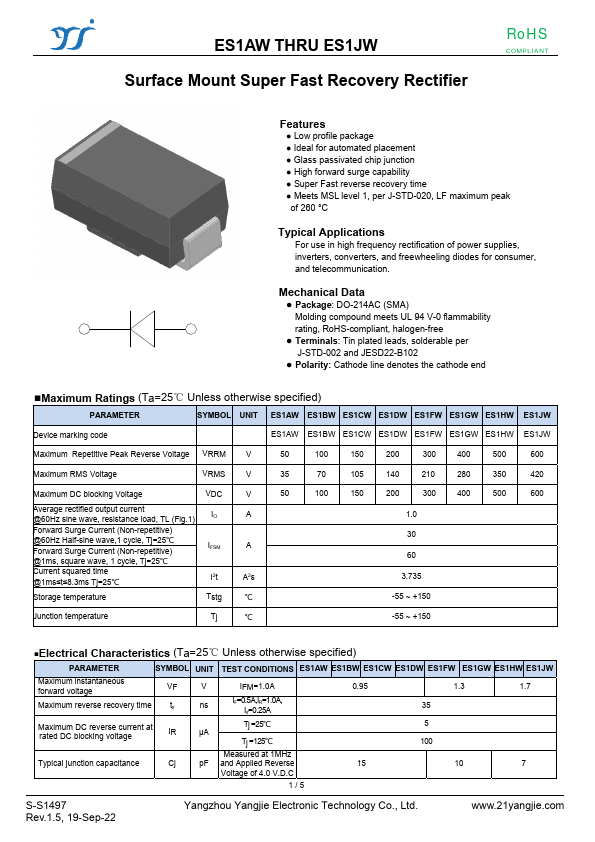

ES1CW Features
* Low profile package
* Ideal for automated placement
* Glass passivated chip junction
* High forward surge capability
* Super Fast reverse recovery time
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications For use in high frequency rectification
Datasheet Details
ES1CW, ES1AW
Yangzhou Yangjie
216.58 KB
Super fast recovery rectifier.
This datasheet PDF includes multiple part numbers: ES1CW, ES1AW.
Please refer to the document for exact specifications by model.
