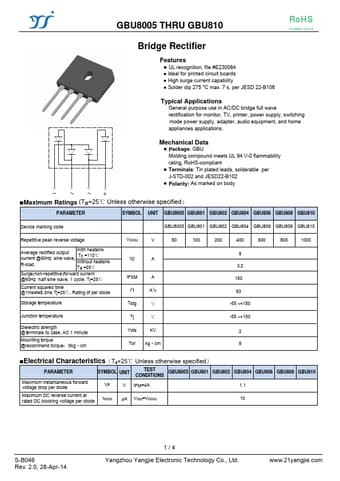

Part number:
GBU8005
Manufacturer:
Yangzhou Yangjie
File Size:
169.43 KB
Description:
Bridge rectifier.
* UL recognition, file #E230084
* Ideal for printed circuit boards
* High surge current capability
* Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications General purpose use in AC/DC bridge full wave rectification for monitor, TV, printer, power supply, switching mode p
GBU8005
Yangzhou Yangjie
169.43 KB
Bridge rectifier.
