KBPC101, KBPC1005 - Bridge Rectifiers

KBPC101 Description

KBPC1005 THRU KBPC110 RoHS COMPLIANT Bridge Rectifiers .

KBPC101 Features

* UL recognition, file #E230084
* Glass passivated chip junction
* Suitable for printed circuit board or chassis mounting -
* Compact construction
* High surge current capability

KBPC101 Applications

* The KBPC series of single phase rectifier bridge consists of four silicon junctions connected as a full bridge. These devices are intended for general use in industrial and consumer equipment. Mechanical Date
* Package: KBPC1 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KBPC101, KBPC1005. Please refer to the document for exact specifications by model.

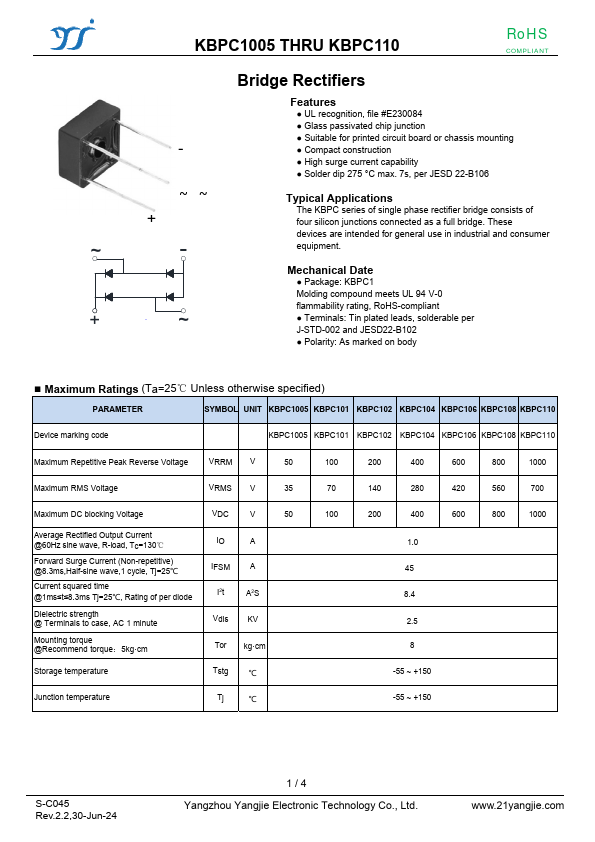

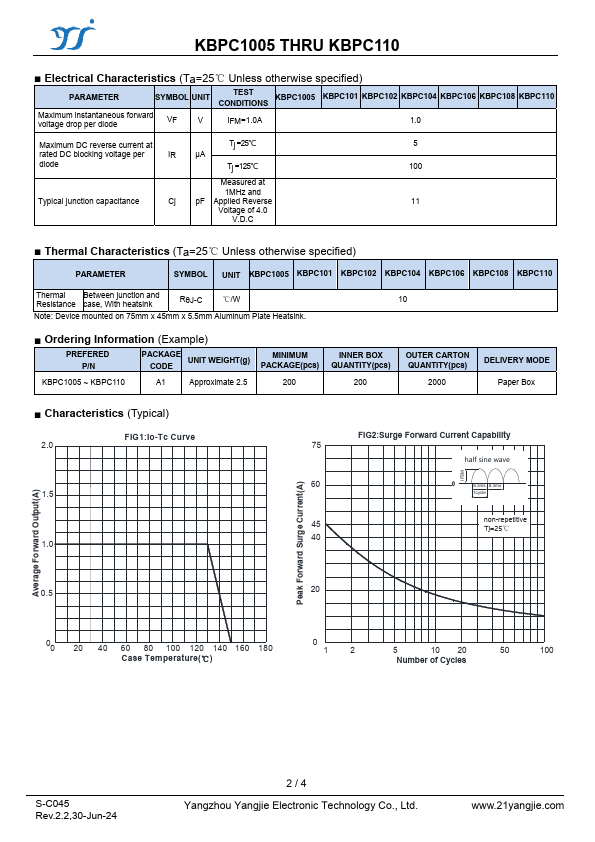

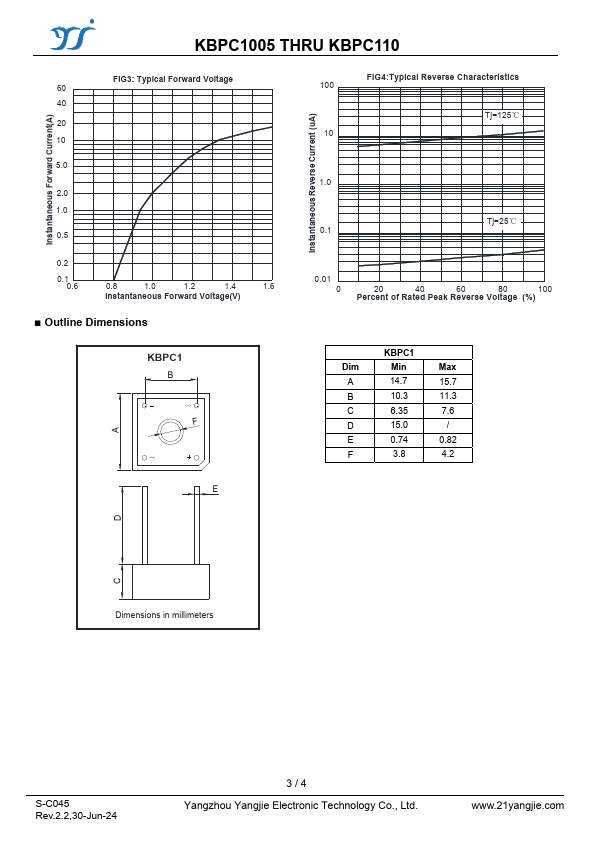

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KBPC101, KBPC1005
Manufacturer
Yangzhou Yangjie
File Size
222.36 KB
Datasheet
KBPC1005-YangzhouYangjie.pdf
Description
Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: KBPC101, KBPC1005.
Please refer to the document for exact specifications by model.
