KBPC1005 - Bridge Rectifiers

Datasheet Summary

Features

  • UL recognition, file #E230084.
  • Glass passivated chip junction.
  • Suitable for printed circuit board or chassis mounting -.
  • Compact construction.
  • High surge current capability.
  • Solder dip 275 °C max. 7s, per JESD 22-B106 ~~ + ~ - + ~ Typical.

📥 Download Datasheet

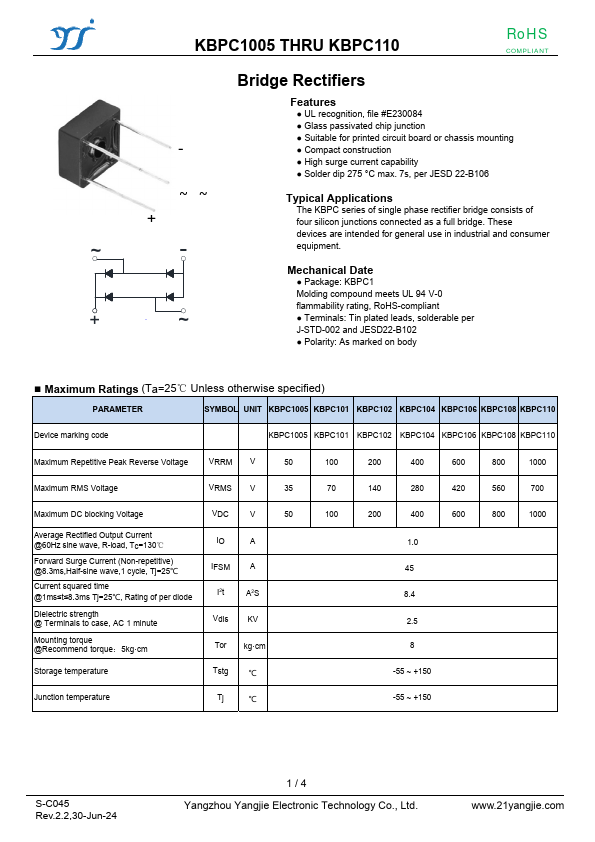

Datasheet preview – KBPC1005

Datasheet Details

Part number KBPC1005
Manufacturer Yangzhou Yangjie
File Size 222.36 KB
Description Bridge Rectifiers
Datasheet download datasheet KBPC1005 Datasheet

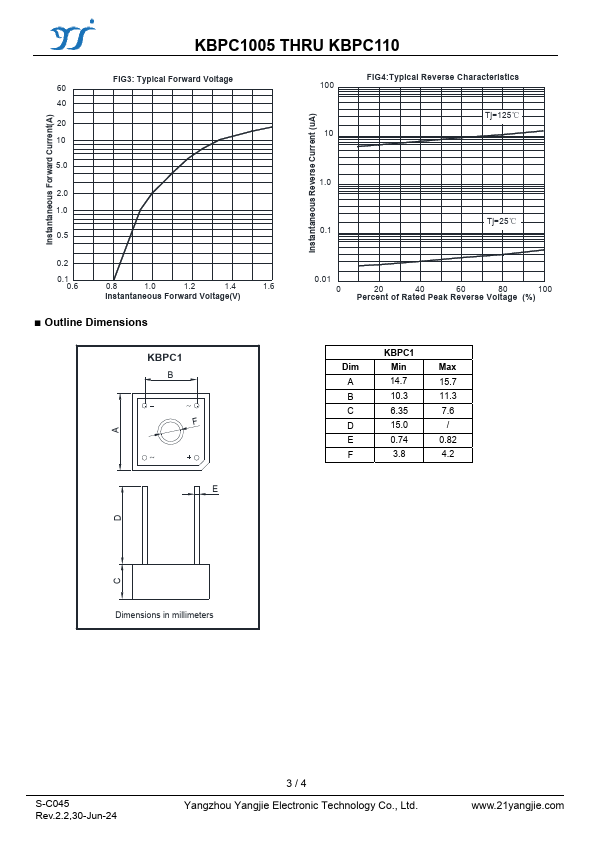

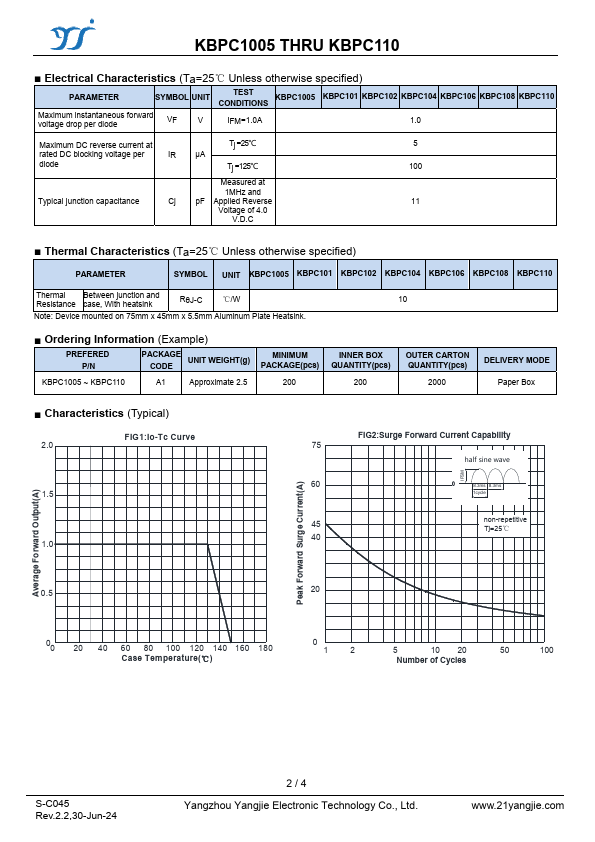

Additional preview pages of the KBPC1005 datasheet.

📁 Similar Datasheet

  • KBPC1005 - RECTIFIER SPECIALISTS (DC COMPONENTS)
  • KBPC1005 - 3.0 AMPERE SINGLE-PHASE SILICON BRIDGE RECTIFIER (Invac)
  • KBPC1005 - SILICON BRIDGE RECTIFIERS (Sunmate)
  • KBPC1005 - 10A Single-Phase Silicon Bridge Rectifier (EVVO)
  • KBPC1005 - Bridge Rectifiers (RFE)
  • KBPC1005 - SILICON BRIDGE RECTIFIERS (SAMYANG)
  • KBPC1005 - Single Phase Rectifier Bridge (Vishay)
  • KBPC1005 - SINGLE-PHASE BRIDGE RECTIFIER (MIC)
  • KBPC1005 - 10A Single-Phase Silicon Bridge Rectifier (SIECOME ELECTRONIC)
  • KBPC100 - 3.0 AMPERE SINGLE-PHASE SILICON BRIDGE RECTIFIER (ETC)
Other Datasheets by Yangzhou Yangjie

Full PDF Text Transcription

Click to expand full text
KBPC1005 THRU KBPC110 RoHS COMPLIANT Bridge Rectifiers Features ● UL recognition, file #E230084 ● Glass passivated chip junction ● Suitable for printed circuit board or chassis mounting - ● Compact construction ● High surge current capability ● Solder dip 275 °C max. 7s, per JESD 22-B106 ~~ + ~ - + ~ Typical Applications The KBPC series of single phase rectifier bridge consists of four silicon junctions connected as a full bridge. These devices are intended for general use in industrial and consumer equipment.
