MBR20150CD, MBR20100CD Schottky Diode

MBR20150CD Description

Pin 2 Pin 3 MBR20100CD THRU MBR20200CD RoHS COMPLIANT Pin 1 Schottky Diodes .

MBR20150CD Features

* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

MBR20150CD Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: TO-252 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD- 002 and JESD22-B1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR20150CD, MBR20100CD. Please refer to the document for exact specifications by model.

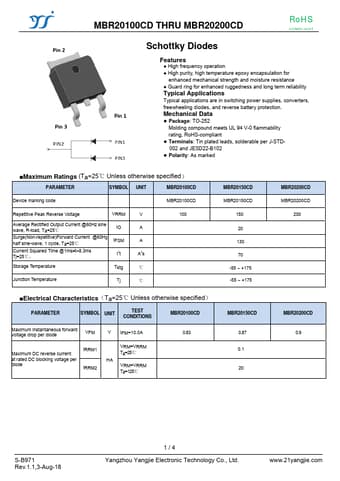

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR20150CD, MBR20100CD
Manufacturer
Yangzhou Yangjie
File Size
160.06 KB
Datasheet
MBR20100CD-YangzhouYangjie.pdf
Description
Schottky Diode
Note
This datasheet PDF includes multiple part numbers: MBR20150CD, MBR20100CD.
Please refer to the document for exact specifications by model.
