MUR160, MUR120, Super Fast Recovery Rectifier

MUR120 THRU MUR160 RoHS COMPLIANT Super Fast Recovery Rectifier .

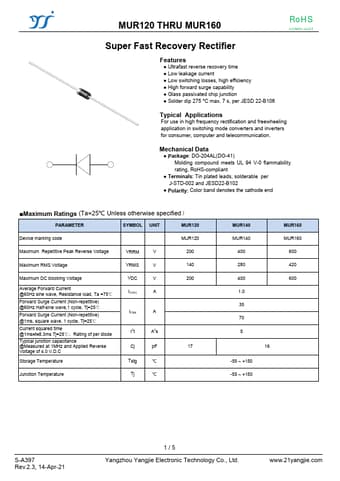

datasheet Preview Page 1 from Datasheet4u.com

MUR120-YangzhouYangjie.pdf

MUR160 Datasheet Preview — This datasheet PDF includes multiple part numbers: MUR160, MUR120. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MUR160, MUR120

Manufacturer:

Yangzhou Yangjie

File Size:

276.60 KB

Description:

Super Fast Recovery Rectifier

Note:

This datasheet PDF includes multiple part numbers: MUR160, MUR120.
Please refer to the document for exact specifications by model.

Features

* Ultrafast reverse recovery time
* Low leakage current
* Low switching losses, high efficiency
* High forward surge capability
* Glass passivated chip junction

Applications

* For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication. Mechanical Data
* Package: DO-204AL(DO-41) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plate
