MUR2020FPT Ultra-Fast Recovery Diode

Yangzhou Yangjie

Description

MUR2020FPT RoHS COMPLIANT Ultra-Fast Recovery Diodes 10A *2 FRED .

📥 Download Datasheet

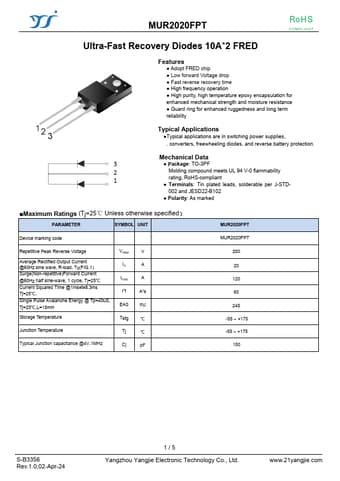

MUR2020FPT Datasheet Preview — Preview of MUR2020FPT PDF

Datasheet Specifications

Part number: MUR2020FPT
Manufacturer: Yangzhou Yangjie
File Size: 288.42 KB
Datasheet: MUR2020FPT-YangzhouYangjie.pdf
Description: Ultra-Fast Recovery Diode

Features

* Adopt FRED chip
* Low forward Voltage drop
* Fast reverse recovery time
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability Ty

Applications

* Typical applications are in switching power supplies, . converters, freewheeling diodes, and reverse battery protection. Mechanical Data 3
* Package: TO-3PF 2 Molding compound meets UL 94 V-0 flammability 1 rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-ST
