MUR20200 - (MUR20100 / MUR20120) Ultra Fast Recovery Diodes

MUR20100, MUR20120 Ultra Fast Recovery Diodes Dimensions TO-220AC A C(TAB) A C C Dim.

A B C D E F G H J K L M N Q www.DataSheet4U.com A=Anode, C=Cathode, TAB=Cathode VRSM V 1000 1200 VRRM V 1000 1200 MUR20100 MUR20120 Inches Min.

Max.

0.500 0.580 0.560 0.650 0.380 0.420 0.139 0.161 2.300 0.420 0.100 0.135 0.045 0.070 0.250 0.025 0.035 0.190 0.210 0.140 0.190 0.015 0.022 0.080 0.115 0.025 0.055 Milimeter Min.

Max.

12.70 14.73 14.23 16.51 9.66 10.66 3.54 4.08 5.85 6.85 2.54 3.42 1.15 1.77 6.

MUR20200 Features

* International standard package

* Glass passivated chips

* Very short recovery time

* Extremely low losses at high switching frequencies

* Low IRM-values

* Soft recovery behaviour APPLICATIONS

* Antiparallel diode for high frequency switching devices

* Antisaturatio

MUR20100_SirectifierSemiconductors.pdf

This datasheet PDF includes multiple part numbers: MUR20200, MUR20100. Please refer to the document for exact specifications by model.

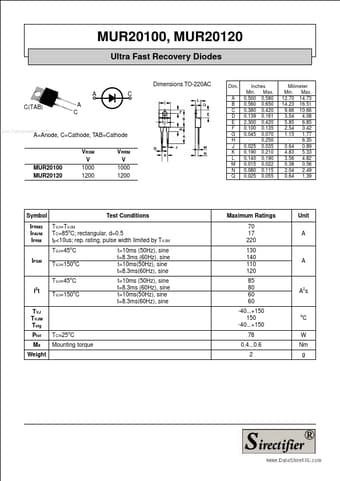

MUR20200 Datasheet Preview Page 2 MUR20200 Datasheet Preview Page 3
