MUR1520 Ultra Fast Recovery Diodes

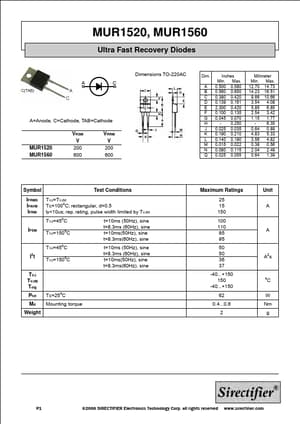

MUR1520, MUR1560 Ultra Fast Recovery Diodes C(TAB) A A C C A=Anode, C=Cathode, TAB=Cathode MUR1520 MUR1560 VRSM V 200 600 VRRM V 200 600 Dimensions TO-220AC Dim. A B C D E F G H J K L M N Q Inches Min. Max. 0.500 0.580 0.560 0.650 0.380 0.420 0.139 0.161 2.300 0.420 0.100 0.135 0.045 0.070 - 0.250 0.025 0.035 0.190 0.210 0.140 0.190 0.015 0.022 0.080 0.115 0.025 0.055 Milimeter Min. Max. 12.70 14.73 14.23 16.51 9.66 10.66 3.54 4.08 5.85 6.85 2.54 3.42 1.15 1.77 - 6.35 0.64 0.89 4.83 5.

MUR1520-SirectifierSemiconductors.pdf

Preview of MUR1520 PDF
MUR1520 Datasheet Preview Page 2 MUR1520 Datasheet Preview Page 3

Datasheet Details

Part number:

MUR1520

Manufacturer:

Sirectifier Semiconductors

File Size:

216.50 KB

Description:

Ultra fast recovery diodes.
