MUR30120L Ultra-Fast Recovery Diode

MUR30120L Description

MUR30120L RoHS COMPLIANT Ultra-Fast Recovery Diodes 30A FRED .

MUR30120L Features

* High frequency operation
* High surge forward current capability
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Solder dip 275 °C max. 7 s, per JESD 22

MUR30120L Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: TO-220AC Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B1

📥 Download Datasheet

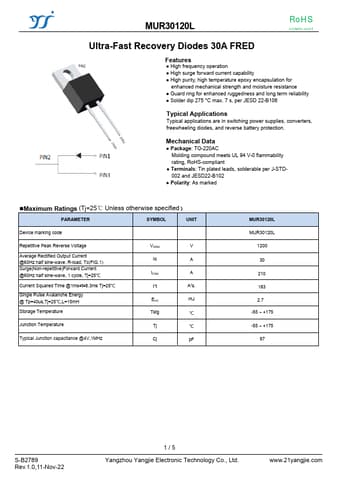

Preview of MUR30120L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MUR30120L
Manufacturer
Yangzhou Yangjie
File Size
216.12 KB
Datasheet
MUR30120L-YangzhouYangjie.pdf
Description
Ultra-Fast Recovery Diode
