MUR30120PL, Ultra-Fast Recovery Diode

MUR30120PL RoHS COMPLIANT Ultra-Fast Recovery Diodes 30A FRED .

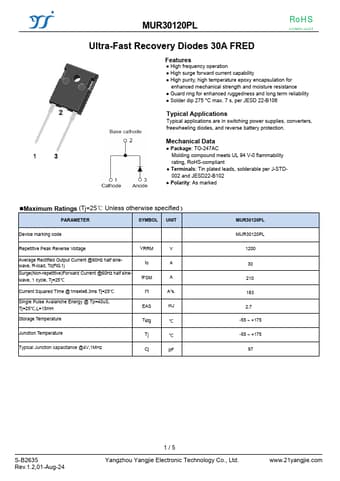

datasheet Preview Page 1 from Datasheet4u.com

MUR30120PL-YangzhouYangjie.pdf

MUR30120PL Datasheet Preview — Preview of MUR30120PL PDF

Datasheet Details

Part number:

MUR30120PL

Manufacturer:

Yangzhou Yangjie

File Size:

265.55 KB

Description:

Ultra-Fast Recovery Diode

Features

* High frequency operation
* High surge forward current capability
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Solder dip 275 °C max. 7 s, per JESD 22

Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: TO-247AC Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B1
