MURS260, MURS220 Surface Mount Super Fast Recovery Rectifier

MURS260 Description

MURS220 THRU MURS260 Surface Mount Super Fast Recovery Rectifier RoHS COMPLIANT .

MURS260 Features

* Low profile package
* Ideal for automated placement
* Glass passivated chip junction
* High forward surge capability
* Super Fast reverse recovery time

MURS260 Applications

* For use in high frequency rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication. Mechanical Data
* Package: DO-214AA (SMB) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
* Terminals: Tin plated

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MURS260, MURS220. Please refer to the document for exact specifications by model.

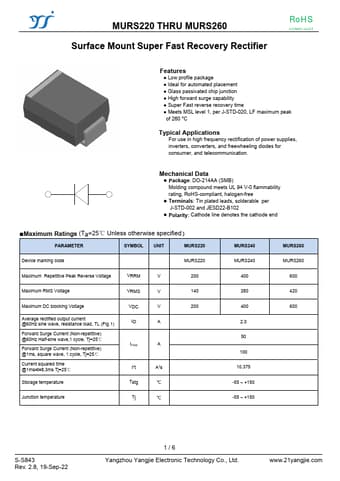

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MURS260, MURS220
Manufacturer
Yangzhou Yangjie
File Size
226.86 KB
Datasheet
MURS220-YangzhouYangjie.pdf
Description
Surface Mount Super Fast Recovery Rectifier
Note
This datasheet PDF includes multiple part numbers: MURS260, MURS220.
Please refer to the document for exact specifications by model.
