BD1800U510-1336 - Ultra Low Profile 1336 Balun

BD1800U510-1336 Description

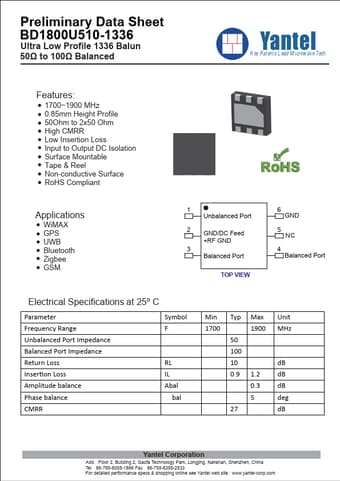

Preliminary Data Sheet BD1800U510-1336 Ultra Low Profile 1336 Balun 50Ω to 100Ω Balanced Key Patents Lead Microwave Tech .

BD1800U510-1336 Features

* 1700~1900 MHz
* 0.85mm Height Profile
* 50Ohm to 2x50 Ohm
* High CMRR
* Low Insertion Loss
* Input to Output DC Isolation
* Surface Mountable
* Tape & Reel
* Non-conductive Surface

BD1800U510-1336 Applications

* WiMAX
* GPS
* UWB
* Bluetooth
* Zigbee
* GSM 1 Unbalanced Port 2 GND/DC Feed +RF GND 3 Balanced Port TOP VIEW 6 GND 5 NC 4 Balanced Port Electrical Specifications at 25º C Parameter Frequency Range Unbalanced Port Impedance Balanced Port Impedance Return Loss Insertion
