BD1800U520-1335 - Ultra Low Profile 1335 Balun

BD1800U520-1335 Description

Preliminary Data Sheet BD1800U520-1335 Ultra Low Profile 1335 Balun 50Ω to 200Ω Balanced Key Patents Lead Microwave Tech .

BD1800U520-1335 Features

* 1600~1900 MHz
* 0.85mm Height Profile
* 50Ohm to 2x100 Ohm
* High CMRR
* Low Insertion Loss
* Input to Output DC Isolation
* Surface Mountable
* Tape & Reel
* Non-conductive Surface

BD1800U520-1335 Applications

* WiMAX
* GPS
* UWB
* Bluetooth
* Zigbee
* GSM 1 Unbalanced Port 2 GND/DC Feed +RF GND 3 Balanced Port TOP VIEW 6 GND 5 NC 4 Balanced Port Electrical Specifications at 25º C Parameter Frequency Range Unbalanced Port Impedance Balanced Port Impedance Return Loss Insertion L

📥 Download Datasheet

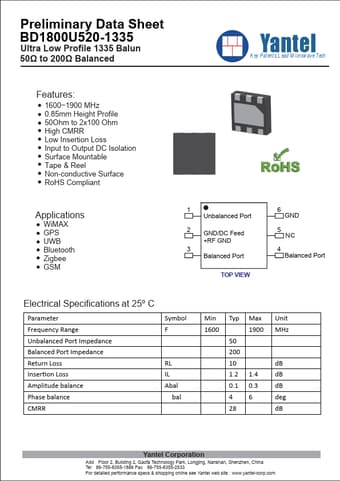

Preview of BD1800U520-1335 PDF
