FAC1202

Fixed Attenuator Chip

FAC1202 Features

* High attenuation accuracy

* Small VSWR

* Ceramic chip: 96% alumina

* Laser trimmed

* Low cost-high performance Model No. Description FACXXXX XX- attenuation:

* dB. XX- frequency range 06: DC to 6GHz 10: DC to 10GHz 12: DC to 12.4GHz 18: DC to 18GHz 26: DC to 26.5GHz. Ch

FAC1202 General Description

FACXXXX XX- attenuation:
*
*dB. XX- frequency range 06: DC to 6GHz 10: DC to 10GHz 12: DC to 12.4GHz 18: DC to 18GHz 26: DC to 26.5GHz. Characteristic For example the testing curves of FAC1202 FAC1202 Frequency(GHz) FAC1202 Fixed Attenuator Chip Specifications Frequency Range DC to 12.4 G.

FAC1202 Datasheet (63.36 KB)

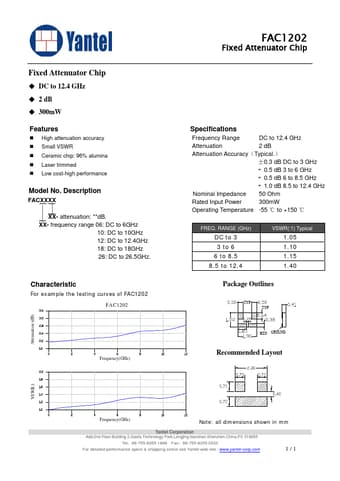

Preview of FAC1202 PDF

Datasheet Details

Part number:

FAC1202

Manufacturer:

Yantel

File Size:

63.36 KB

Description:

Fixed attenuator chip.
