HC5500M03 Datasheet, Coupler, Yantel

HC5500M03 Features

  • Coupler
  • 5000-6000 MHz
  • High Power
  • Very Low Loss
  • Tight Amplitude Balance
  • High Isolation
  • Low VSWR
  • Good Repeatability

PDF File Details

Part number:

HC5500M03

Manufacturer:

Yantel

File Size:

1.47MB

Download:

📄 Datasheet

Description:

Hybrid coupler. The HC5500M03 is a low profile, high performance 3dB hybrid coupler in a new easy to use,manufacturing friendly surface mount package

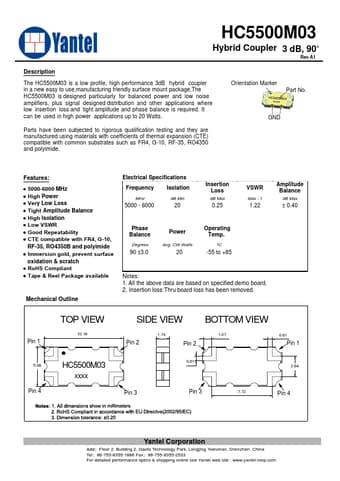

Datasheet Preview: HC5500M03 📥 Download PDF (1.47MB)
Page 2 of HC5500M03 Page 3 of HC5500M03

HC5500M03 Application

  • Applications where low insertion loss and tight amplitude and phase balance is required. It can be used in high power applications up to 20 Watts. P
