VAS073501N5

Miniature Variable Attenuator

VAS073501N5 Features

* n Using advanced microstrip technology, ultra-small size n Attenuation values are adjustable in a power-on state, no sudden big reflection. It adopts an innovative technology, and thus it eliminates sudden big reflection in attenuators when attenuation is being adjusted, preventing the preliminary R

VAS073501N5 General Description

VAS
*
*
*
*
*
* Type Attenuation Range Step Value
* Connector Type
*
* Max. Power Connector Option VAS: Step Variable Attenuator Type: 07 represents type number Attenuation Range: Maximum attenuation. Connector Type: S and N available. S is SMA and N is N ty.

VAS073501N5 Datasheet (208.75 KB)

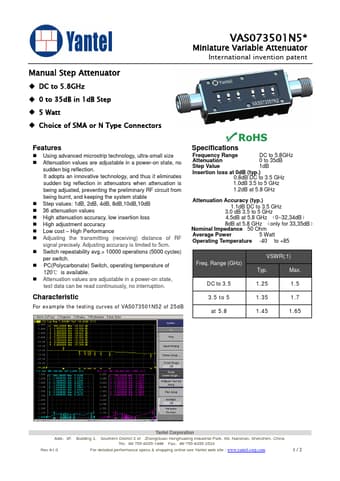

Preview of VAS073501N5 PDF

Datasheet Details

Part number:

VAS073501N5

Manufacturer:

Yantel

File Size:

208.75 KB

Description:

Miniature variable attenuator.
Manual Step Attenuator u DC to 5.8GHz u 0 to 35dB in 1dB Step u 5 Watt u Choice of SMA or N Type Connectors VAS073501N5
* Miniature Variable Atten.
