VAS073501N52, VAS073501N5 Miniature Variable Attenuator

VAS073501N52 Description

Manual Step Attenuator u DC to 5.8GHz u 0 to 35dB in 1dB Step u 5 Watt u Choice of SMA or N Type Connectors VAS073501N5 * Miniature Variable Atten.
VAS. Type Attenuation Range Step Value. Connector Type. Max.

VAS073501N52 Features

* n Using advanced microstrip technology, ultra-small size n Attenuation values are adjustable in a power-on state, no sudden big reflection. It adopts an innovative technology, and thus it eliminates sudden big reflection in attenuators when attenuation is being adjusted, preventing the preliminary R

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VAS073501N52, VAS073501N5. Please refer to the document for exact specifications by model.

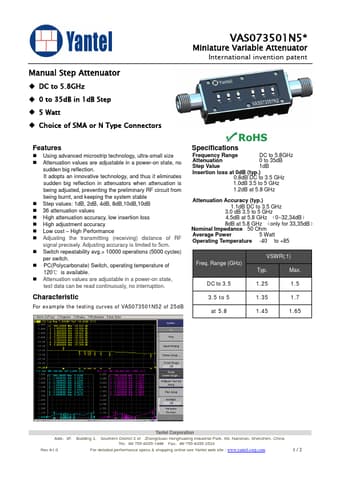

datasheet Preview Page 2

Datasheet Details

Part number
VAS073501N52, VAS073501N5
Manufacturer
Yantel
File Size
208.75 KB
Datasheet
VAS073501N5-Yantel.pdf
Description
Miniature Variable Attenuator
Note
This datasheet PDF includes multiple part numbers: VAS073501N52, VAS073501N5.
Please refer to the document for exact specifications by model.
