GP20 Paperless Recorder

Maximum or minimum value per recordling interval * Recording intervals: Determined by the trend interval For GP20 Trend interval (div) 5s Number of channels 100 10 s 15 s or longer 200 500 Note that the maximum number of channels is fixed at 100 in the GP10. * Data size; .

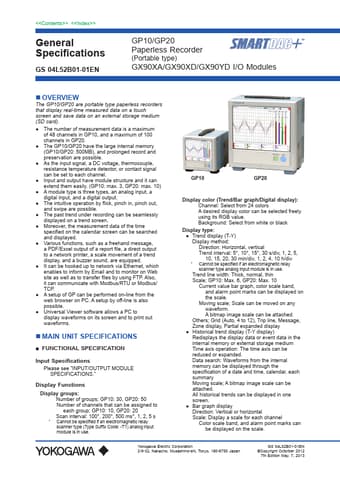

<> <> General Specifications GS 04L52B01-01EN GP10/GP20 Paperless Recorder (Portable type) GX90XA/GX90XD/GX90YD I/O Modules OVERVIEW The GP10/GP20 are portable type paperless recorders that display real-time measured data on a touch screen and save data on an external storage medium (SD card). The number of measurement data is a maximum of 48 channels in GP10, and a maximum of 100 channels in GP20. The GP10/GP20 have the large internal memory (GP10/GP20: 50.

GP20 Features

* change alarms: 1 to 32 times the scan interval (common to all channels)

* Hysteresis: 0.0 to 5.0% of the span (for each alarm (level))

* Alarm output: Output to the internal switch Internal switch operation: AND/OR operation selectable

* Display: Displays the status on

GP20 Datasheet (1.11 MB)
