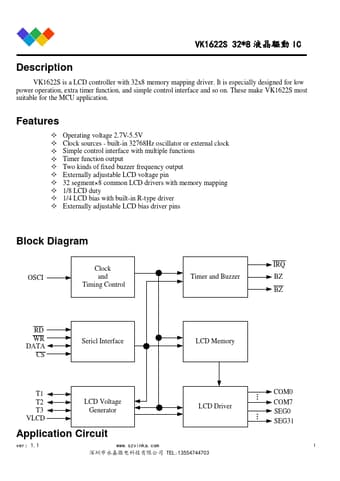

VK1622S Datasheet Preview — Preview of VK1622S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: VK1622S
Manufacturer: Yongjia
File Size: 452.81 KB
Datasheet: VK1622S-Yongjia.pdf
Description: 32 x 8 LCD Driver IC

VK1622S Product details

Description

VK1622S is a LCD controller with 32x8 memory mapping driver.

Features

Operating voltage 2.7V-5.5V.
Clock sources - built-in 32768Hz oscillator or external clock.
Simple control interface with multiple functions.
Timer function output.
Two kinds of fixed buzzer frequency output.
Externally adjustable LCD voltage pin.
32 segment×8 common LCD drivers with memory mapping.
1/8 LCD duty.
1/4 LCD bias with built-in R-type driver.
Externally adjustable LCD bias driver pins Block Diagram OSCI Clock and Timing Control T.
