YB1109MB

Boost Converter

YB1109MB Features

* WideInputRange: 2.5-6V Input,

* YB1109M/YB1109MB Up To 2A Output Current

* 1.2MHz Switching Frequency

* Low RDS(ON): 70mΩ

* Up to 93% Efficiency . Over Voltage Protection

* Under-Voltage Lockout Protection

* Over-Temperature Protection

* Internal Soft Start

YB1109MB General Description

The YB1109M/YB1109MB is a high efficiency current-mode boost converter with a fixed operation frequency. The YB1109M /YB1109MB hasbeen integrated a very low Rds-on NMOSFTET to reduce power loss and achieve high efficiency. The maximum efficiency is up to 93%. YB1109M/YB1109MB can output 2A current w.

YB1109MB Datasheet (2.82 MB)

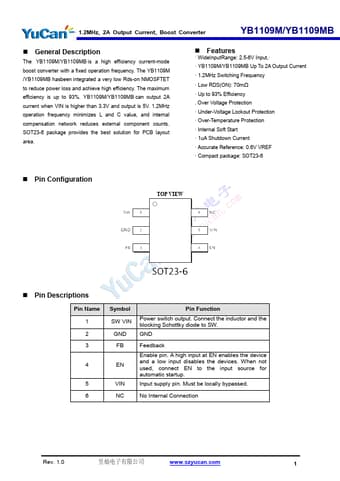

Preview of YB1109MB PDF

Datasheet Details

Part number:

YB1109MB

Manufacturer:

YuCan

File Size:

2.82 MB

Description:

Boost converter.
