V440ME08, V440ME08_Z, OSCILLATOR

www.DataSheet4U.com 9939 Via Pasar * San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 V440ME08 VOLTAGE CONTROLLED OSCILLATOR Rev A1 .

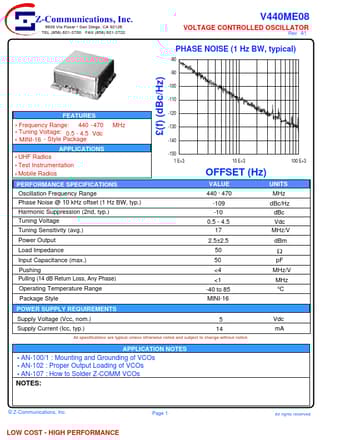

datasheet Preview Page 1 from Datasheet4u.com

V440ME08_Z-Communications.pdf

V440ME08 Datasheet Preview — This datasheet PDF includes multiple part numbers: V440ME08, V440ME08_Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

V440ME08, V440ME08_Z

Manufacturer:

Z-Communications

File Size:

99.18 KB

Description:

OSCILLATOR

Note:

This datasheet PDF includes multiple part numbers: V440ME08, V440ME08_Z.
Please refer to the document for exact specifications by model.

Features

* 440 - 470
* Frequency Range:
* Tuning Voltage: 0.5 - 4.5 Vdc

Applications

* UHF Radios
* Test Instrumentation
* Mobile Radios PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ. ) Harmonic Suppression (2nd, typ. ) Tuning Voltage Tuning Sensitivity (avg. ) Power Output Load Impedance Input Capacitance (max.
