V585ME01

OSCILLATOR

V585ME01 Datasheet (189.57 KB)

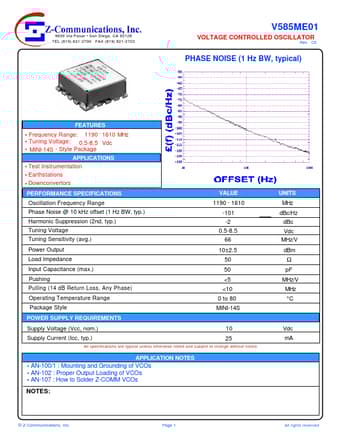

Preview of V585ME01 PDF

Datasheet Details

Part number:

V585ME01

Manufacturer:

Z-Communications

File Size:

189.57 KB

Description:

Oscillator.
www.DataSheet4U.com V585ME01 9939 Via Pasar

* San Diego, CA 92126 TEL (619) 621-2700 FAX (619) 621-2722 VOLTAGE CONTROLLED OSCILLATOR Rev C.

V585ME01 Features

* Frequency Range: 1190 - 1610 MHz

* Tuning Voltage: 0.5-8.5 Vdc

* MINI-14S - Style Package APPLICATIONS

* Test Instrumentation

* Earthstations

* Downconvertors PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW
