V585ME05, V585ME05_Z - OSCILLATOR

Z-Communications

V585ME05 Description

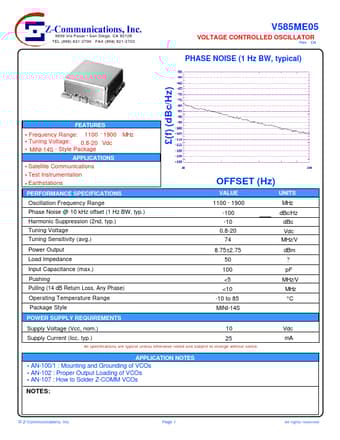

www.DataSheet4U.com V585ME05 9939 Via Pasar * San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 VOLTAGE CONTROLLED OSCILLATOR Rev D.

V585ME05 Features

* Frequency Range: 1100 - 1900
* Tuning Voltage: 0.8-20 Vdc

V585ME05 Applications

* Satellite Communications
* Test Instrumentation
* Earthstations PERFORMANCE SPECIFICATIONS Oscillation Frequency Range MHz £(f) (dBc/Hz) OFFSET (Hz) VALUE 1100 - 1900 -100 -10 0.8-20 74 8.75±2.75 50 100

📥 Download Datasheet

V585ME05 Datasheet Preview — This datasheet PDF includes multiple part numbers: V585ME05, V585ME05_Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: V585ME05, V585ME05_Z
Manufacturer: Z-Communications
File Size: 82.92 KB
Datasheet: V585ME05_Z-Communications.pdf
Description: OSCILLATOR
Note: This datasheet PDF includes multiple part numbers: V585ME05, V585ME05_Z.
Please refer to the document for exact specifications by model.
