V630ME01 - OSCILLATOR

This page provides the datasheet information for the V630ME01, a member of the V630ME01_Z OSCILLATOR family.

Features

  • Frequency Range: 2085 - 2220 MHz.
  • Tuning Voltage: 0.5-4.5 Vdc.
  • MINI-14S - Style Package.

📥 Download Datasheet

Datasheet preview – V630ME01

Datasheet Details

Part number V630ME01
Manufacturer Z-Communications
File Size 76.87 KB
Description OSCILLATOR
Datasheet download datasheet V630ME01 Datasheet
Additional preview pages of the V630ME01 datasheet.

📁 Similar Datasheet

  • V6300 - (V6300 / V6301) Ultra Low Power 3-Pin Power-On Reset IC (EM Microelectronic)
  • V6301 - Ultra Low Power 3-Pin Voltage Surveillance with Time-out (ETC)
  • V6301 - (V6300 / V6301) Ultra Low Power 3-Pin Power-On Reset IC (EM Microelectronic)
  • V6309 - 3-Pin Microprocessor Reset Circuit (ETC)
  • V6310 - Ultra Low Power 3-Pin Voltage Window Surveillance (EM Microelectronic)
  • V6319 - 3-Pin Microprocessor Reset Circuit (ETC)
  • V6340 - Ultra Low Cost 3-Pin Microprocessor Reset (ETC)
  • V6340P - Ultra Low Cost 3-Pin Microprocessor Reset (ETC)
  • V6355D - LCDC / Silicon Gate CMOS Device (Yamaha)
  • V6355D-H - LCD / CRT Display Controller (Yamaha)
Other Datasheets by Z-Communications

Full PDF Text Transcription

Click to expand full text

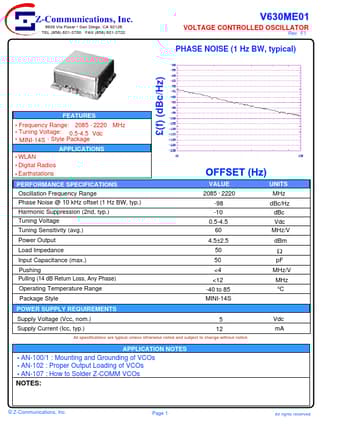

www.DataSheet4U.com 9939 Via Pasar • San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 VOLTAGE CONTROLLED OSCILLATOR Rev F1 PHASE NOISE (1 Hz BW, typical) FEATURES • Frequency Range: 2085 - 2220 MHz • Tuning Voltage: 0.5-4.5 Vdc • MINI-14S - Style Package APPLICATIONS • WLAN • Digital Radios • Earthstations PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ.) Harmonic Suppression (2nd, typ.) Tuning Voltage Tuning Sensitivity (avg.) Power Output Load Impedance Input Capacitance (max.) Pushing Pulling (14 dB Return Loss, Any Phase) £(f) (dBc/Hz) VALUE 2085 - 2220 -98 -10 0.5-4.5 60 4.5±2.
