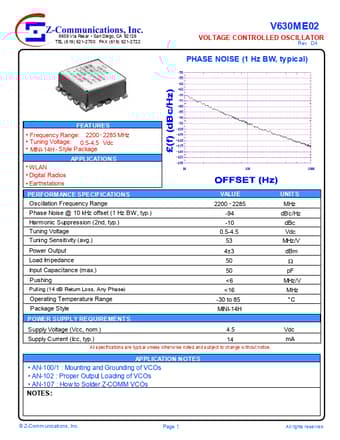

www.DataSheet4U.com 9939 Via Pas ar • San Diego, CA 92126 TEL (619) 621-2700 FAX (619) 621-2722 V630ME02 VOLTAGE CONTROLLED OSCILLATOR Rev D4 PHASE NOISE (1 Hz BW, typical) FEAT URES • Frequency Range: 2200 - 2285 MHz • Tuning Voltage: 0.5-4.5 Vdc • MINI-14H - Style Package APPLICATIONS • WLAN • Digital Radios • Earthstations PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ.) Harmonic Suppression (2nd, typ.) Tuning Voltage Tuning Sensitivity (avg.) Power Output Load Impedance Input Capacitance (max.) Pushing Pulling (14 dB Return Loss, Any Phase) VALUE 2200 - 2285 -94 -10 0.5-4.5 53 4±3 50 50 <6 <16 -30 to 85 MINI-14H 4.
