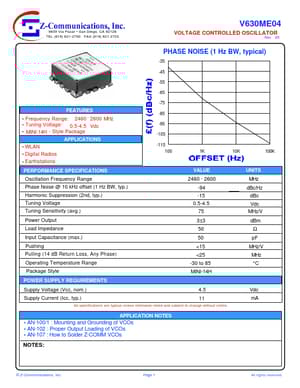

V630ME04, V630ME04_Z OSCILLATOR

www.DataSheet4U.com V630ME04 9939 Via Pasar * San Diego, CA 92126 TEL (619) 621-2700 FAX (619) 621-2722 VOLTAGE CONTROLLED OSCILLATOR Rev E.

V630ME04_Z-Communications.pdf

V630ME04 Datasheet Preview — This datasheet PDF includes multiple part numbers: V630ME04, V630ME04_Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

V630ME04, V630ME04_Z

Manufacturer:

Z-Communications

File Size:

188.01 KB

Description:

OSCILLATOR

Note:

This datasheet PDF includes multiple part numbers: V630ME04, V630ME04_Z.
Please refer to the document for exact specifications by model.

Features

* Frequency Range: 2460 - 2600 MHz
* Tuning Voltage: 0.5-4.5 Vdc

Applications

* WLAN
* Digital Radios
* Earthstations PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ. ) Harmonic Suppression (2nd, typ. ) Tuning Voltage Tuning Sensitivity (avg. ) Power Output Load Impedance Input Capacitance (max. ) Pushing Pu
