3SMBJ5913B-TPX01 - 3.0 Watt Surface Mount Silicon Zener Diodes

ZBMCC

📥 Download Datasheet

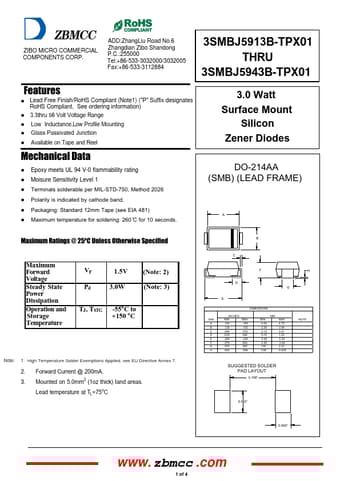

3SMBJ5913B-TPX01 Datasheet Preview — Preview of 3SMBJ5913B-TPX01 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: 3SMBJ5913B-TPX01
Manufacturer: ZBMCC
File Size: 501.87 KB
Datasheet: 3SMBJ5913B-TPX01-ZBMCC.pdf
Description: 3.0 Watt Surface Mount Silicon Zener Diodes

3SMBJ5913B-TPX01 Product details

Features

Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix designates RoHS Compliant. See ordering information) 3.3thru 56 Volt Voltage Range Low Inductance,Low Profile Mounting Glass Passivated Junction Available on Tape and Reel Mechanical Data Epoxy meets UL 94 V-0 flammability rating Moisure Sensitivity Level 1 Terminals solderable per MIL-STD-750, Method 2026 Polarity is indicated by cathode band. Packaging: Standard 12mm Tape (see EIA 481) Maximum temperature for soldering: 260 0C for 10 seconds.
