RGP20G - SINTERED GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIER

Product Overview

ZOWIE

Part number	RGP20G
Manufacturer	ZOWIE
File Size	51.49 KB
Description	SINTERED GLASS PASSIVATED JUNCTION FAST RECOVERY RECTIFIER
Datasheet	RGP20G Datasheet
Note	This datasheet PDF includes multiple part numbers: RGP20G, RGP20A. Please refer to the document for exact specifications by model.

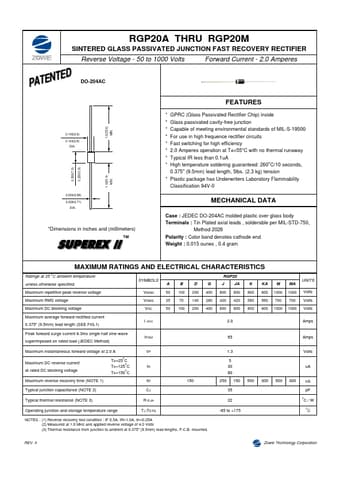

Additional preview pages of the RGP20G datasheet.

GPRC (Glass Passivated Rectifier Chip) inside.
Glass passivated cavity-free junction.
Capable of meeting environmental standards of MIL-S-19500.
For use in high frequence rectifier circuits.
Fast switching for high efficiency.
2.0 Amperes operation at TA=55oC with no thermal runaway.
Typical IR less than 0.1uA.
High temperature soldering guaranteed: 260oC/10 seconds, 0.375" (9.5mm) lead length, 5lbs. (2.3 kg) tension.
Plastic package has Underwriters.
