MV95308 Datasheet - Zarlink Semiconductor

30MHz 8-BIT CMOS VIDEO DAC

MV95308 Features

* s Low Power Consumption (180mW Typ) s 30MHz Pipeline Operation s ±1 LSB Differential Linearity Error s ±1 LSB Integral Linearity Error s RS-343A/RS-170 Compatible Levels s On Chip Reference Voltage Source s Guaranteed Monotonic s Drives 75Ω Loads Directly s Single 5V Power Supply www.DataSheet4U.com

MV95308 General Description

As illustrated in the function block diagram, Fig. 2, the MV95308 contains an 8-bit D-to-A converter, input registers, a loop ampliﬁer and a voltage reference. On the falling edge of each clock cycle, as shown in Fig. 3, eight data bits are latched into the device and passed to the 8-bit D-to-A conv.

MV95308 Datasheet (207.75 KB)

MV95308 Datasheet Preview — Preview of MV95308 PDF

Datasheet Details

Part number:

MV95308

Manufacturer:

Zarlink Semiconductor

File Size:

207.75 KB

Description:

30mhz 8-bit cmos video dac.

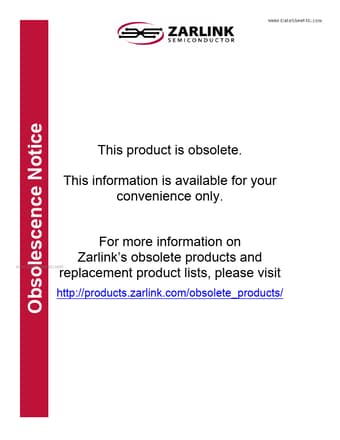

Obsolescence Notice This product is obsolete. This information is available for your convenience only. For more information on Zarlink’s obsolete pro.
