SP8714, Very Low Current Multi-Modulus Divider

www.DataSheet4U.com SP8714 SP8714 2100 MHz Very Low Current Multi-Modulus Divider March 2006 The SP8714 is a switchable divide by 32/33, 64/65 prog.

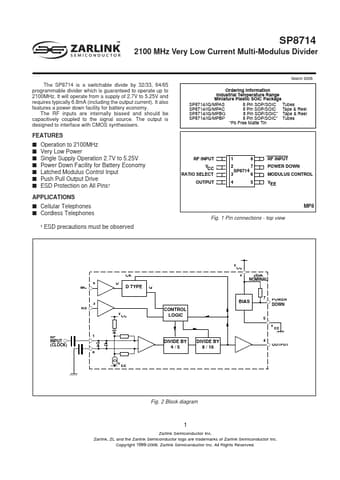

datasheet Preview Page 1 from Datasheet4u.com

SP8714_ZarlinkSemiconductor.pdf

SP8714 Datasheet Preview — Preview of SP8714 PDF

Datasheet Details

Part number:

SP8714

Manufacturer:

Zarlink Semiconductor

File Size:

512.92 KB

Description:

Very Low Current Multi-Modulus Divider

Features

* a power down facility for battery economy. The RF inputs are internally biased and should be capacitively coupled to the signal source. The output is designed to interface with CMOS synthesisers. Ordering Information Industrial Temperature Range Miniature Plastic SOIC Package SP8714/IG/MPAS 8 Pin S

Applications

* I Cellular Telephones I Cordless Telephones † MP8 Fig. 1 Pin connections - top view ESD precautions must be observed V CK 6 MC D CC 2 250K NOMINAL D TYPE Q 7 POWER DOWN 3 RS V CC BIAS CONTROL LOGIC 5 V EE RF INPUT (CLOCK) 1 DIVIDE BY 4/5 8 V DIVIDE BY 8 / 16 4 OUTPUT EE Fig. 2 Block
