VP5513 Datasheet, Encoder, Zarlink Semiconductor

VP5513 Features

  • Encoder s s s s s s s s s s s Converts Y, Cr, Cb data to analog RGB and composite or S-video and composite video Supports CCIR recommendations 601 and 656 All digital video encoding Selectable

PDF File Details

Part number:

VP5513

Manufacturer:

Zarlink Semiconductor

File Size:

304.77kb

Download:

📄 Datasheet

Description:

(vp5313 / vp5513) ntsc/pal digital video encoder. Pin Name PD0-7 PXCK SA SCL SDA FC0-2 REFSQ SCSYNC PALID COMPSYNC CLAMP Pin No. 2-4, 38-42 44 18 23 24 12-14 9 8 7 6 5 Description 8

Datasheet Preview: VP5513 📥 Download PDF (304.77kb)

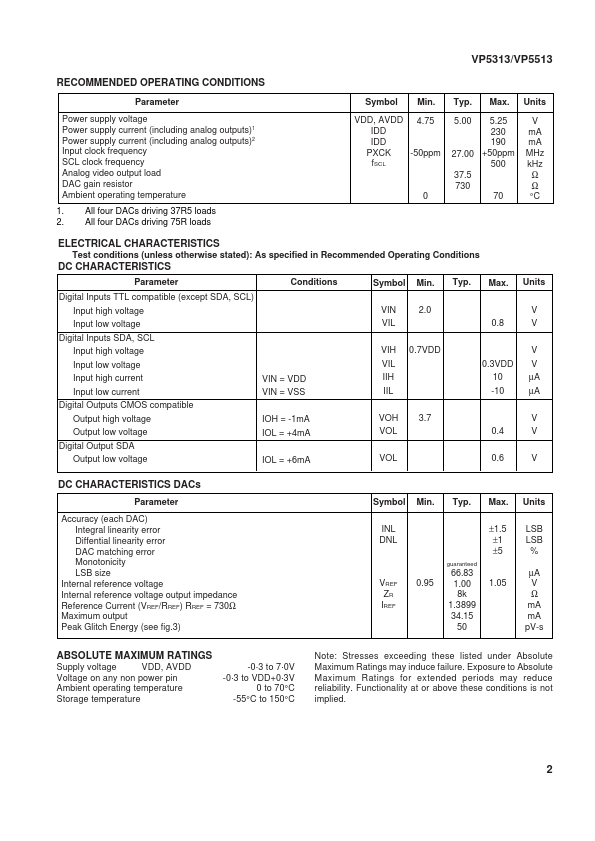

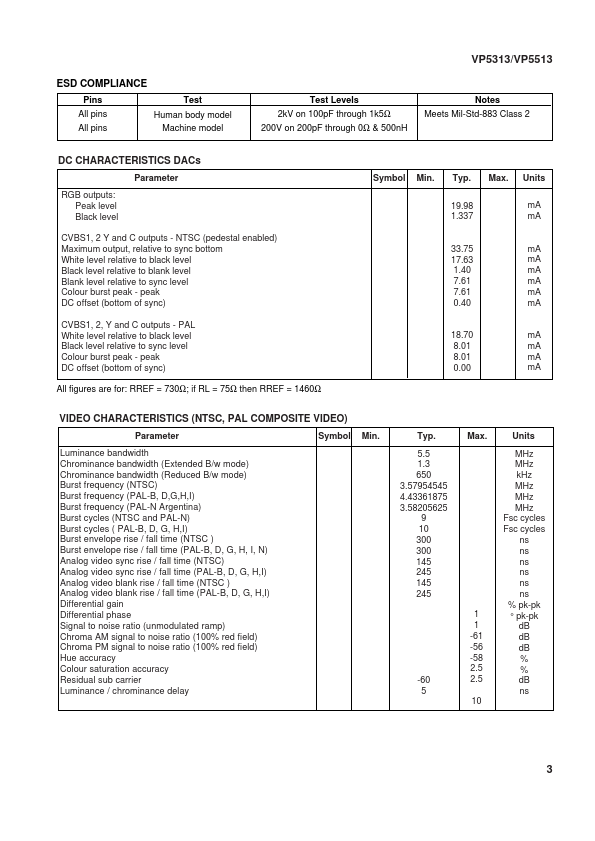

Page 2 of VP5513 Page 3 of VP5513

VP5513 Application

  • Applications s s s s s s Digital Cable TV Digital Satellite TV Multi-media Video games Digital VCRs Karaoke ORDERING INFORMATION VP5313A/CG/GP1N VP
