Part number: ZL10100
Manufacturer: Zarlink Semiconductor
File Size: 460.02KB
Download: 📄 Datasheet
Description: Single Chip Synthesized Downconverter
* Single chip synthesised downconverter forming a complete double conversion tuner when combined with the SL2100 or SL2101 Compatible with digital and analogue system.
*
*
*
*
* Double conversion tuners Digital Terrestrial tuners Cable Modems Cable telephony MATV
RF .
The ZL10100 is a fully integrated single chip mixer oscillator with on-board low phase noise I2C bus controlled PLL frequency synthesizer. It is intended primarily as the down converter for application in double conversion tuners and is compatible wi.

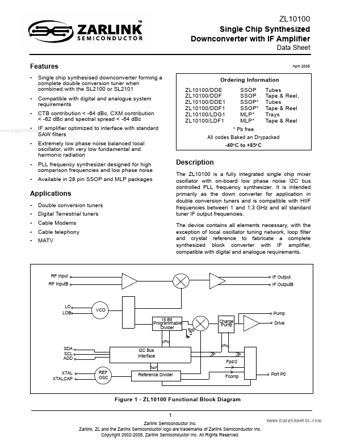

Image gallery
