Part number: ZL1505
Manufacturer: intersil
File Size: 234.41KB
Download: 📄 Datasheet

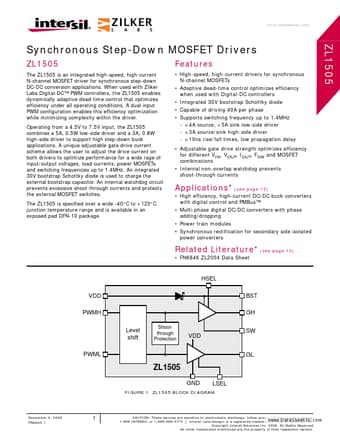

Description: Synchronous Step-Down MOSFET Drivers
* High-speed, high-current drivers for synchronous N-channel MOSFETs
* Adaptive dead-time control optimizes efficiency when used with Digital-DC controllers
*.
When used with Zilker Labs Digital-DC™ PWM controllers, the ZL1505 enables dynamically adaptive dead-time control that .
PIN NUMBER 1 PIN NAME HSEL TYPE (Note 3) I DESCRIPTION High-side gate drive current selector. Connect to BST for maximum gate drive current; Connect to SW for 50% of maximum gate drive current.
2 3 4 5 6
GH SW PWMH PWML LSEL
O I/O I I I
Output o.
