BS250P

P-CHANNEL ENHANCEMENT MODE VERTICAL DMOS FET

BS250P Features

* 45 Volt VDS

* RDS(on)=14Ω BS250P D G S REFER TO ZVP2106A FOR GRAPHS ABSOLUTE MAXIMUM RATINGS. PARAMETER Drain-Source Voltage Continuous Drain Current at Tamb =25°C Pulsed Drain Current Gate-Source Voltage Power Dissipation at Tamb =25°C Operating and Storage Temperature Range SYMBOL V

BS250P Datasheet (48.88 KB)

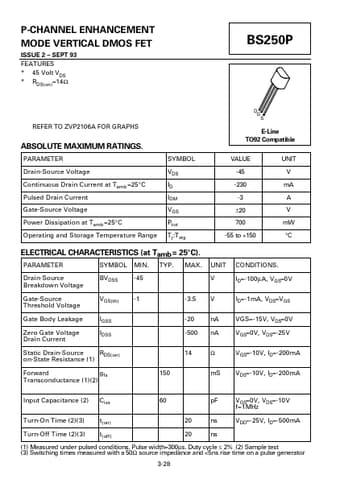

Preview of BS250P PDF

Datasheet Details

Part number:

BS250P

Manufacturer:

Zetex Semiconductors

File Size:

48.88 KB

Description:

P-channel enhancement mode vertical dmos fet.
