ZMY30 Magnetic Field Sensors

ZMY30 Description

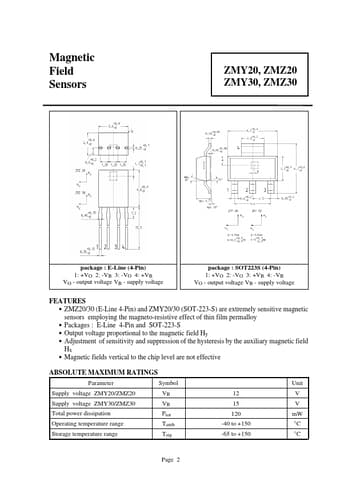

Magnetic Field Sensors ZMY20, ZMZ20 ZMY30, ZMZ30 package : E-Line (4-Pin) 1: +VO 2: -VB 3: -VO 4: +VB VO - output voltage VB - supply voltage packa.

ZMY30 Features

* ZMZ20/30 (E-Line 4-Pin) and ZMY20/30 (SOT-223-S) are extremely sensitive magnetic sensors employing the magneto-resistive effect of thin film permalloy
* Packages : E-Line 4-Pin and SOT-223-S
* Output voltage proportional to the magnetic field Hy
* Adjustment of sen

ZMY30 Applications

* with HX < 3 kA/m, the sensor has to be reset by an auxiliary field of HX ≥ 3 kA/m before use. Page 7 ZMY20/30, ZMZ 20/30 Page 8
