ZMY20 - Magnetic Field Sensors

Product Overview

Zetex Semiconductors

📥 Download Datasheet

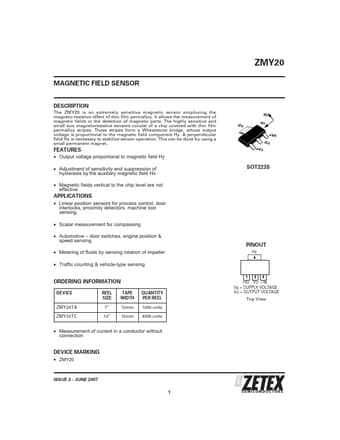

ZMY20 Magnetic Field Sensors by Zetex Semiconductors - Datasheet Preview — Datasheet preview – ZMY20

Datasheet Details

Part number	ZMY20
Manufacturer	Zetex Semiconductors
File Size	220.90 KB
Description	Magnetic Field Sensors
Datasheet	ZMY20 Datasheet
Additional preview pages of the ZMY20 datasheet.

Product details

Features

ZMZ20/30 (E-Line 4-Pin) and ZMY20/30 (SOT-223-S) are extremely sensitive magnetic sensors employing the magneto-resistive effect of thin film permalloy.
Packages : E-Line 4-Pin and SOT-223-S.
Output voltage proportional to the magnetic field Hy.
Adjustment of sensitivity and suppression of the hysteresis by the auxiliary magnetic field Hx.
Magnetic fields vertical to the chip level are not effective.
