ZSR500 Datasheet, Regulator, Zetex Semiconductors

ZSR500 Features

  • Regulator
  • Small outline SO8 and SOT223 package
  • TO92 package
  • 2.85 to 12 Volt
  • Output current up to 200mA
  • Tight initial tolerance
  • Low qui

PDF File Details

Part number:

ZSR500

Manufacturer:

Zetex Semiconductors

File Size:

421.15kb

Download:

📄 Datasheet

Description:

2.85 to 12 volt fixed positive local voltage regulator. The ZSR Series three terminal fixed positive voltage regulators feature internal circuit current limit and thermal shutdown making th

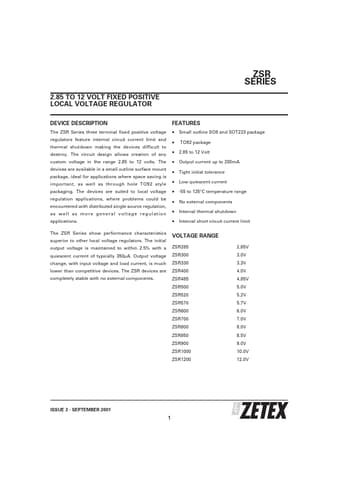

Datasheet Preview: ZSR500 📥 Download PDF (421.15kb)
Page 2 of ZSR500 Page 3 of ZSR500

ZSR500 Application

  • Applications where space saving is important, as well as through hole TO92 style packaging. The devices are suited to local voltage regulation appli
