ZXCT1012

Reduced height micro-power current monitor

ZXCT1012 Features

* www.DataSheet4U.com Applications

* Battery fuel gauge Battery chargers Overcurrent monitor Power management 2.5V to 20V supply range 3.5µA quiescent current Current output - user set gain Thin package - TSOT23-5 and TDFN3x3-5 Temp

ZXCT1012 General Description

The ZXCT1012 is a high side current sense monitor. Using this type of device eliminates the need to disrupt the ground plane when sensing a load current. The ZXCT1012 takes the voltage developed across a small value resistor and translates it into a proportional output current. A user defined output.

ZXCT1012 Datasheet (474.57 KB)

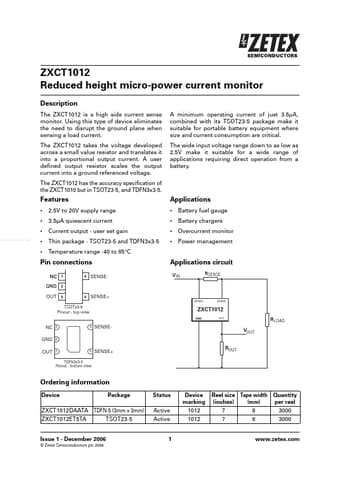

Preview of ZXCT1012 PDF

Datasheet Details

Part number:

ZXCT1012

Manufacturer:

Zetex Semiconductors

File Size:

474.57 KB

Description:

Reduced height micro-power current monitor.
